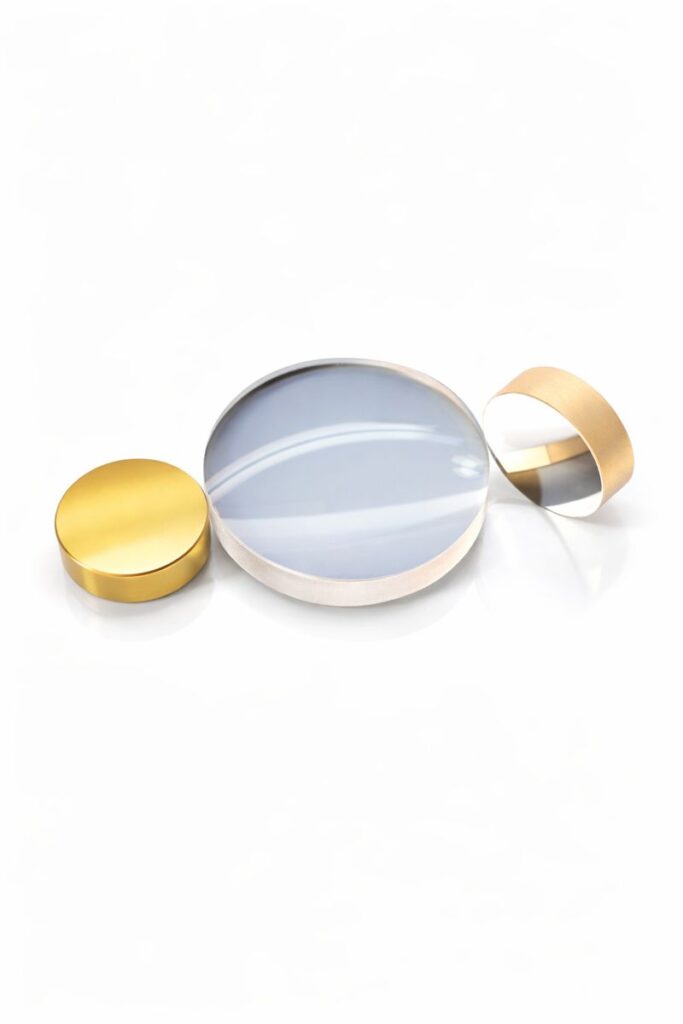

Laser Output Mirror

Laser Output Mirror

A picture containing game, ball, sunglasses

Description automatically generated

Description

  1.  Features:
  • High Reflectivity: Our Laser Output Mirrors offer a broad range of reflectivity values, from 17% to 90%, depending on your specific application needs.
  • Optimized for Laser Systems: These mirrors are specifically designed for CO2 and YAG laser systems, ensuring optimal performance in both systems.
  • Durable with High Damage Threshold: The mirrors are designed to withstand high-intensity laser power, maintaining high precision in demanding environments.
  • Various Material Choices: Available in materials such as BK7 and ZnSe, which are tailored to different wavelengths and laser system requirements.
  • Customizable Sizes and Reflectivity: Offered in a wide variety of sizes and custom reflectivity options to suit different laser power and wavelength specifications.
  1. General Description:

Laser output mirrors are critical components used in resonant cavities to control the output mode and ensure laser power consistency. These mirrors reflect a part of the energy back into the resonant cavity while allowing the rest to be transmitted for various applications such as cutting, welding, and heat treatment.

Shape Optics Technologies manufactures high-performance laser output mirrors designed for CO2 and YAG laser systems, among others. These mirrors are built with high damage thresholds, ensuring longevity and reliability in high-power laser systems. The mirrors are crafted from superior materials like BK7 and ZnSe to match specific laser wavelengths. Reflectivity values can be customized to achieve the best performance for each particular application.

With high precision, these mirrors ensure that lasers are accurately directed and that the energy is optimally split between the resonant cavity and the output. Shape Optics Technologies offers a comprehensive solution, with customizations available for unique specifications based on laser system requirements.

  1. Spectrum Transmission Curves:

Shape Optics Technologies provides custom solutions based on the exact wavelength needs of the system. Custom transmission curves will be generated upon request, ensuring compatibility with your system’s unique requirements. These curves are based on our standard mirrors but can be adjusted for optimal transmission and reflectivity based on your operational needs.

  1. Coating Quality:
  • Adhesion Test: Compliant with MIL-C-675C military standards. This test involves applying a tape meeting LT-90 specifications to the lens film layer, which is then removed three times without causing blistering or peeling.
  • Temperature Test: Test pieces are exposed to temperatures between -62±1℃ and 71±1℃, with the adhesion test repeated after exposure at room temperature, confirming no film detachment.
  • Abrasion Resistance Test: Conforms to MIL-C-675C and CCC-C-440 standards, applying a minimum force of 1.0 lbs (0.45 kg) to the film 25 times, with no surface damage.
  • Humidity Test: Test pieces are exposed to 95%-100% humidity at 49 ±2℃ for 24 hours, and the film remains intact without defects.
  • Solvent and Cleaning Test: Exposed to acetone and alcohol at room temperature for 10 minutes each, followed by air drying and cleaning with alcohol-soaked cotton, showing no signs of peeling or scratches.
  • Salt Spray Test: After 100 hours in a 35°C saltwater environment with a 5% concentration, the film shows no signs of damage.
  1. Standard Specifications:
Material Wavelength Reflectivity Size Options
BK7 1064nm 17%, 40%, 50%, 60%, 85%, 90% D12.76.4mm, D20.05.0mm, D25.4*9.5mm
ZnSe 10.6μm 17%, 40%, 50%, 60%, 85%, 90% D12.76.4mm, D20.05.0mm, D25.4*9.5mm
  1. General Applications and Examples:

Laser output mirrors are essential components for numerous high-power laser systems:

  • CO2 Laser System: Commonly used for cutting, welding, engraving, and heat treatment, these mirrors reflect a specific wavelength of laser light while letting the rest pass through for directed applications.
  • YAG Laser System: A YAG laser output mirror ensures that the system operates with high precision for use in applications such as medical surgery, material processing, and scientific research.
  • Precision Manufacturing: In industrial processes requiring precise laser cutting, welding, and material etching, these mirrors offer high reflectivity and damage resistance to ensure operational efficiency and longevity.
  • Research and Development: Laser mirrors are extensively used in labs and research environments where lasers are employed for various scientific investigations.

Custom configurations are available for specific needs such as military applications or specialized industrial uses.

  1. SOT Strengths and Capabilities:

Shape Optics Technologies is a leader in providing high-precision optical components, including laser output mirrors. With years of experience and advanced manufacturing capabilities, SOT offers not only off-the-shelf solutions but also customized designs to fit specific client needs. Our commitment to quality ensures that each mirror performs under the toughest conditions while maintaining exceptional accuracy. SOT is capable of producing large volumes of standard products as well as providing tailored solutions for one-off or niche applications. Our expertise in coating technologies ensures that every product meets the highest durability standards for various applications, whether for medical lasers, industrial lasers, or research tools.

  1. Standard Products:
Material Wavelength Reflectivity Size
BK7 1064nm 85% D25.4*9.5mm
ZnSe 10.6μm 90% D25.4*9.5mm

Customized sizes, coatings, and reflectivity values are available based on specific requirements. Please contact us for more details.
