Description
Items Notes：
- Size, mm: The first lists the dimensions of the crystal in millimeters; W*H*L(mm)
- θ, deg: The second represents the phase-matching angle θ in degrees. This is the angle at which phase matching occurs for nonlinear optical processes.
- φ, deg: The third represents the azimuthal angle φ in degrees. This angle specifies the orientation of the crystal axis in the plane perpendicular to the propagation direction.
- Coating: The fourth describes the coating applied to the crystal, specifying the wavelength range for which the coating is optimized (e.g., P/P @ 400-800 nm).

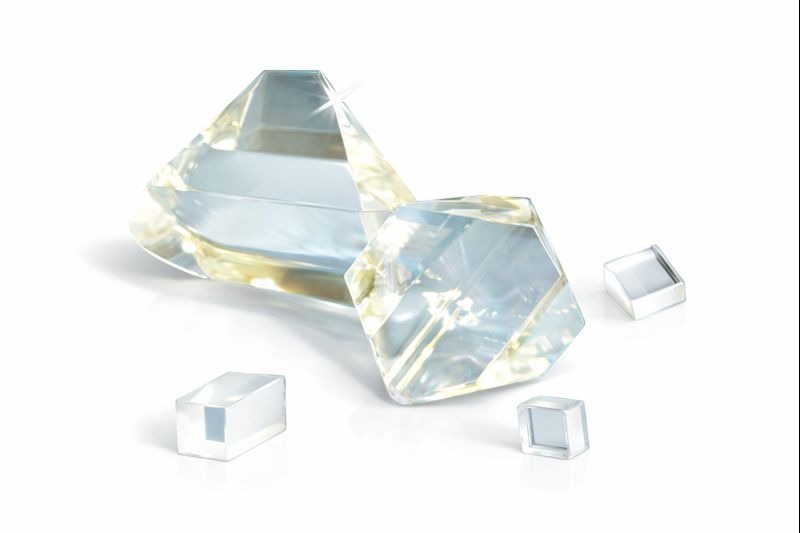

Description: Potassium Titanyle Arsenate (KTA) is a nonlinear optical crystal widely used in various applications due to its high transparency range, significant nonlinear coefficients, and excellent phase matching capabilities. It is extensively employed in laser technology, frequency conversion, and electro-optic applications.
Physical Properties:
| Property | Value |
|---|---|
| Crystal Structure | Orthorhombic |
| Point Group | mm2 |
| Space Group | Pna21 |
| Lattice Constants, Å | a = 13.125, b = 6.5716, c = 10.786 |
| Density, g/cm³ | 3.45 |
| Melting Point, °C | 1130 |
| Mohs Hardness | 5 |
| Thermal Conductivity, W/m·K | k₁ = 1.8, k₂ = 1.9, k₃ = 2.1 |
| Hygroscopicity | Not hygroscopic |
Nonlinear & Optical Properties:
| Property | Value |
|---|---|
| Transparency | 350 – 5300 nm |
| Wavelength Dispersion of Refractive Indices | |
| nₓ² = 1.90713 + 1.23522 λ² / (λ² – 0.196922²) – 0.01025 λ² | |
| n_y² = 2.15912 + 1.00099 λ² / (λ² – 0.218442²) – 0.01096 λ² | |
| n_z² = 2.14768 + 1.29559 λ² / (λ² – 0.227192²) – 0.01436 λ² | |
| Electro-Optical Constants | r₃₃ = 37.5 pm/V, r₂₃ = 15.4 pm/V, r₁₃ = 11.5 pm/V |
| Effective Nonlinearity | dₑₒₑ = d₁₅ sin²φ + d₂₄ cos²φ (x-y plane) |
| dₑₒₑ = d₁₅ sinθ (x-z plane) | |
| d₁₅ = 2.3 pm/V, d₃₂ = 3.66 pm/V, d₃₃ = 15.5 pm/V | |
| d₂₄ = 3.64 pm/V, d₁₅ = 2.3 pm/V | |
| Damage Threshold | >500 MW/cm² for pulses λ = 1064 nm, τ = 10 ns, 10 Hz, TEM₀₀ |
Specifications:
| Specification | Value |
|---|---|
| Flatness | λ/8 at 633 nm |
| Parallelism | < 20 arcsec |
| Surface Quality | 10 – 5 scratch & dig (MIL-PRF-13830B) |
| Perpendicularity | < 15 arcmin |
| Angle Tolerance | < ± 0.2° |
| Aperture Tolerance | ± 0.1 mm |
| Clear Aperture | > 90% central area |
| Transmitting Wavefront Distortion | less than λ/8 @ 633 nm |
Applications:
- Frequency Doubling: Widely used for second harmonic generation (SHG) of lasers, including Nd
and Nd
lasers.
- Optical Parametric Oscillators (OPOs): Suitable for generating tunable wavelengths.
- Electro-Optic Modulators: Employed in high-speed electro-optic applications.
- Ultraviolet (UV) Generation: Effective in producing UV light through nonlinear processes.
Processing and Handling:
- Surface Protection: To maintain the integrity of KTA crystals, a protective coating may be applied during handling and processing.
- Machining: Requires careful handling to avoid damage to the crystal structure during milling or other machining processes.
