Time-resolved fluorescent filters

1. Features

• Precision Performance: Optimized for time-resolved fluorescence applications, ensuring high signal-to-noise ratio and accurate measurement of rapid fluorescence decay.
• Advanced Coating Technology: Manufactured using advanced coatings that provide excellent signal clarity, high transmission, and sharp cutoff depth.
• Customizable Filters: Filters can be customized to meet specific wavelengths and optical densities for tailored performance in diverse applications.
• High Sensitivity: Designed to detect even the shortest fluorescence signals with precise time resolution.
• Reliable and Durable: Long-lasting filters that provide consistent performance, even under demanding experimental conditions.

2. General Description

Shape Optics Technologies Pte Ltd (SOT) offers Time-Resolved Fluorescent Filters specifically engineered for high-performance time-resolved fluorescence measurements. These filters are essential in applications that require precise temporal resolution of fluorescence signals, such as fluorescence lifetime imaging microscopy (FLIM), time-resolved fluorescence assays, and molecular diagnostics.

SOT’s filters are manufactured using advanced coating technology, which ensures optimal performance in high-sensitivity fluorescence detection. The high signal-to-noise ratio provided by these filters allows accurate measurement of rapidly decaying fluorescence signals, which is crucial in capturing real-time dynamics of biological and chemical processes.

These filters are suitable for a wide range of applications, from molecular biology and environmental monitoring to medical diagnostics and material science. SOT also offers customizable filters based on wavelength ranges and optical density requirements, ensuring the best performance for your specific application. Built for durability and long-term reliability, these filters provide dependable results in even the most challenging environments.

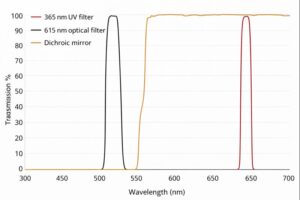

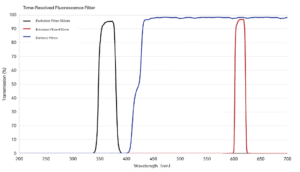

3. Spectrum Transmission Curves

If the standard filters do not meet the requirements for your specific application, SOT can provide customized filters tailored to your precise wavelength ranges and optical densities. Please contact us to discuss your specific needs.

4. Coating Quality

SOT’s Time-Resolved Fluorescent Filters undergo extensive testing to ensure the highest quality and performance:

• Adhesion Test: Compliant with MIL-C-675C military standards, involving applying LT-90 specification tape to the film, followed by vertical removal three times. No blistering or peeling occurs.
• Temperature Test: Filters are subjected to temperatures of -62±1℃ and 71±1℃. After two hours at room temperature (16℃~32℃), the adhesion is tested again, confirming no detachment.
• Abrasion Resistance Test: In line with MIL-C-675C and CCC-C-440 standards, the abrasion resistance test is conducted with a gauze tester applying 1.0 lbs (0.45 kg) of force, repeated 25 times without damaging the surface.
• Humidity Test: The filters are exposed to a controlled environment at 49±2℃ and 95%-100% humidity for 24 hours. No peeling or scratching is observed.
• Solvent and Cleaning Testing: Filters are exposed to acetone and alcohol for 10 minutes each. After air drying and cleaning with alcohol, no peeling or scratches appear.
• Salt Spray Test: Filters undergo 100 hours of testing in a 35°C environment with 5% saltwater, with no signs of damage.

5. Standard Specifications

6. General Applications and Examples

The Time-Resolved Fluorescent Filters are used in a wide range of advanced research and diagnostic applications:

1. Time-Resolved Fluorescence Spectroscopy: Filters optimized for capturing rapidly decaying fluorescence signals, enabling high-precision time-resolved measurements.
2. Fluorescence Lifetime Imaging Microscopy (FLIM): Essential for imaging biological tissues and cells, where the decay rate of fluorescence is used to gather information about molecular interactions.
3. Time-Resolved Fluorescence Immunoassays: Used in immunoassay techniques that measure the interaction between molecules with high temporal precision.
4. Fluorescence Resonance Energy Transfer (FRET): Used for detecting molecular interactions by capturing the energy transfer between different fluorophores over time.
5. Molecular Biology and Biotechnology: Provides high accuracy in the detection of biomarkers and protein interactions, enhancing research in genomics and proteomics.
6. Medical Diagnostics: Used in diagnostic assays that rely on precise fluorescence measurements to identify biomarkers or pathogens.

7. SOT Strengths and Capabilities

Shape Optics Technologies Pte Ltd (SOT) is known for its innovation in optical filters, offering cutting-edge solutions for fluorescence-based applications. With a deep commitment to high-quality production, SOT filters provide unparalleled performance in terms of optical clarity, durability, and customization. The company’s ability to develop filters tailored to the specific needs of customers ensures that researchers and medical professionals receive the highest precision and reliability in their fluorescence measurements. SOT’s filters are backed by rigorous quality control standards, ensuring consistent results for complex scientific applications.

8. Standard Products

Customization Options

SOT provides Time-Resolved Fluorescent Filters customized to meet your specific wavelength, optical density, and spectral requirements. Contact us for further details or to request a custom solution tailored to your application.
