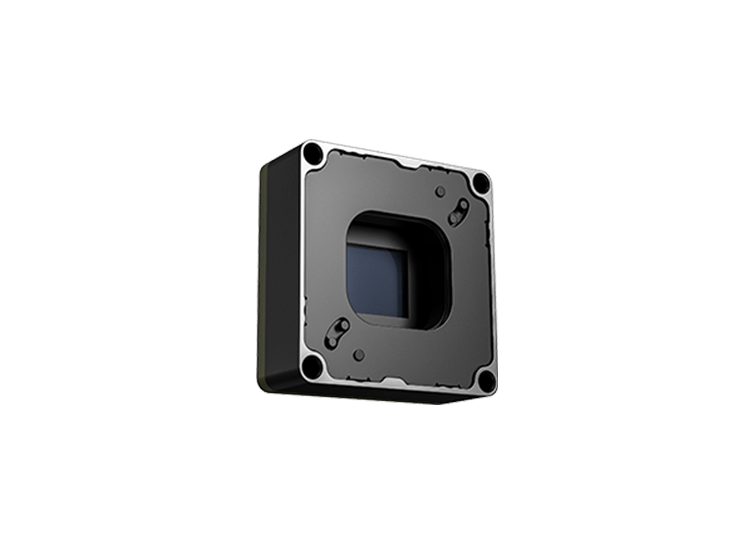

The Shape Optics Spiritpupil Series uncooled thermal module integrates a high-reliability infrared detector designed for excellent shock and vibration resistance. All critical components—including the lens, detector, and structural elements—are independently developed in-house to ensure strong technical security and long-term reliability. With an integrated hardware and software architecture, the module effectively compensates for energy drift, delivering stable performance, high image clarity, and smooth imaging. Its compact design, customizable interfaces, and multiple infrared lens options make it highly adaptable for integration into a wide range of thermal imaging and electro-optical systems.
- High-Reliability Infrared Detector – Provides stable performance with strong shock and vibration resistance.
- In-House Core Components – Lens, detector, and structural design developed internally for enhanced reliability and technical control.
- Integrated Hardware & Software Design – Compensates for energy drift to ensure clear and smooth thermal imaging.
- Compact and Lightweight Module – Ideal for space-constrained system integration.
- Flexible Interfaces – Supports customizable interfaces for easy integration.
- Multiple Infrared Lens Options – Allows different focal lengths to meet various application requirements.
Thermal Module
| Parameter | SOT-SP-S-E | SOT-SP-SL-E | SOT-SP-S-Q | SOT-SP-SL-Q |
|---|---|---|---|---|
| Detector Type | Vox | Vox | Vox | Vox |
| Response Waveband | 8 ~ 14 µm | 8 ~ 14 µm | 8 ~ 14 µm | 8 ~ 14 µm |
| Resolution | 384 × 288 | 384 × 288 | 640 × 512 | 640 × 512 |
| Pixel Pitch | 12 µm | 12 µm | 12 µm | 12 µm |
| NETD | ≤ 50mk, @F1.0, 300K | ≤ 50mk, @F1.0, 300K | ≤ 50mk, @F1.0, 300K | ≤ 50mk, @F1.0, 300K |
| Frame Rate | ≤ 50Hz | ≤ 50Hz | ≤ 50Hz | ≤ 50Hz |
Lens Optional
Focal Length: 9.1 / 13 / 19 / 25 / 35 / 50 mm
Field of View:
9.1mm: 28.9° × 21.62°
13mm: 20.1° × 15.14°
19mm: 13.83° × 10.39°
25mm: 10.53° × 7.91°
35mm: 7.53° × 5.65°
50mm: 5.28° × 3.96°
Aperture: F1.0
Focusing Method: Manual
Image Function
- Image Correction: Shutter / Shutterless (Selectable)
- Image Processing: Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancement
- Brightness Contrast Adjustment: Auto / Manual
- Digital Zoom: 1–8×
- Reticle: Show / Hide / Move
- Palettes: Whitehot / Blackhot / Iron / Rainbow
Power Supply
- Power Supply Protection: Supports Over-voltage, Under-voltage, and Reverse Connection Protection
- Power Input: DC 3.8 ~ 5.5V
- Power Consumption: ≤ 0.6W
Interface
- Analog Video: CVBS
- Digital Video: BT.656 / LVDS / MIPI
- Communication Interface: UART
Physical Parameter
- Vibratory: 6.06g, Random Vibration, All Axial Directions
- Shock Resistance: 200g, 4ms, Back Peak Sawtooth, 3 Axes, 6 Directions
- Humidity: 5 ~ 95%, Non-condensing
- Operation Temperature: -20°C ~ +55°C
- Storage Temperature: -55°C ~ +70°C
- Dimensions: 21mm × 21mm × 9mm (Lens excluded)
- Weight: ≤ 10g (Lens excluded)
- Driver Assistance Systems – Enhances visibility for automotive night-vision and safety systems.
- Car Maintenance – Detects abnormal heat patterns for diagnostics and inspection.
- Forest Fire Prevention – Supports early heat detection and wildfire monitoring.
- Fire Warning Systems – Enables rapid thermal detection for fire safety and emergency response.
