Description

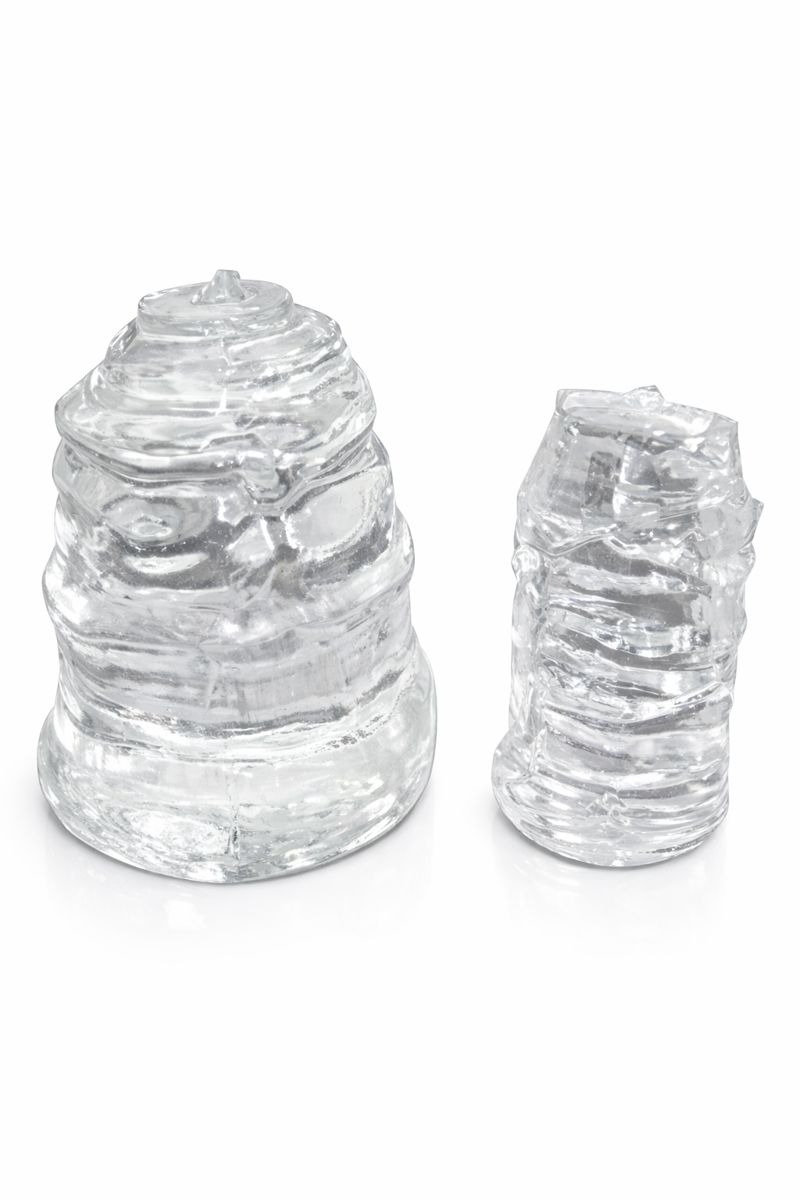

Description: Titanium-doped Sapphire (TI:SAPPHIRE ) is a highly efficient laser crystal known for its excellent optical properties and broad tunability. It is widely used in ultrafast and high-power laser systems, making it ideal for a variety of applications including scientific research, spectroscopy, and medical imaging.
Physical Properties:
| Property | Value |
|---|---|
| Crystal Type | Trigonal |
| Density, g/cm³ | 3.98 |
| Melting Point, °C | 2040 |
| Refractive Index | @ 0.265 µm, n = 1.7595 |
| @ 10.3 µm, n = 1.7352 | |
| Transmission Range, µm | 0.2 – 5.5 |
Standard Specifications of TI:SAPPHIRE
| Specification | Value |
|---|---|
| Material | Ti |
| Surface Quality | 10 – 5 scratch & dig (MIL-PRF-13830B) |
| Clear Aperture | 90% of the diameter |
| Diameter Tolerance | +0.0 / -0.1 mm |
| Thickness Tolerance | ± 0.1 mm |
| Surface Flatness | λ/10 @ 633 nm |
| Parallelism | 10 arcsec |
| Orientation | <0001> crystalline direction |
| Chamfers | 0.1 mm at 45° |
| Coating | AR coating @ 800 nm, R < 0.2%, AOI = 0 deg |
Characteristics of Different Ti Crystals
| Property | Ti |
|---|---|
| Orientation | c-cut [0001] |
| Length, mm | 10 |
| Refractive Index, n | 1.7595 @ 800 nm |
| Nonlinear Coefficients | χ² = 2.49 x 10⁻¹⁰ esu |
| Thermal Conductivity | 46 W/m·K |
| Optical Damage Threshold | 500 MW/cm² |
| Emission Cross-Section | 3 x 10⁻¹⁹ cm² |
| Fluorescence Lifetime | 3.2 µs |
Applications:
- Ultrafast Lasers: Ideal for ultrafast laser systems due to its broad tunability and high gain.
- Medical Imaging: Used in medical imaging devices for high-resolution imaging.
- Spectroscopy: Suitable for spectroscopic applications due to its broad emission range.
- Scientific Research: Employed in various research settings for optical experiments and innovations.
- Industrial Processing: Suitable for cutting, welding, and marking applications.
Processing and Handling:
- Surface Protection: To maintain the integrity of Ti crystals, a protective coating may be applied during handling and processing.
- Machining: Requires careful handling to avoid damage to the crystal structure during milling or other machining processes.
Why Choose Shape Optics on TI:SAPPHIRE ?
At Shape Optics, we pride ourselves on our comprehensive expertise and advanced capabilities in the field of optical materials and components. Our commitment to quality and innovation has positioned us as a leader in the industry, serving a diverse range of applications from scientific research to industrial manufacturing.
- Advanced Manufacturing: Shape Optics utilizes state-of-the-art equipment and techniques to ensure the highest precision and quality in our products. Our manufacturing processes are designed to meet the stringent demands of modern optical applications.
- Customization: We understand that every project is unique. Shape Optics offers customized solutions tailored to meet the specific needs of our clients. Whether you require specific dimensions, coatings, or performance characteristics, we have the flexibility to deliver.
- Quality Assurance: Our rigorous quality control processes ensure that every product we deliver meets the highest standards of performance and reliability. Shape Optics is committed to continuous improvement and excellence in all aspects of our operations.
- Expertise and Support: With a team of highly skilled professionals, Shape Optics provides unparalleled technical support and expertise. Our team is dedicated to helping you achieve optimal results in your optical applications.
- Global Reach: Shape Optics serves clients worldwide, providing reliable and timely delivery of products. Our global network ensures that we can meet your needs wherever you are located.
- Sustainability and Responsibility: Shape Optics is committed to sustainable practices and responsible manufacturing. We strive to minimize our environmental impact while delivering high-quality optical solutions Ti crystals from Shape Optics represent the pinnacle of quality and performance in optical materials. With our advanced capabilities, commitment to quality, and customer-centric approach, Shape Optics is your ideal partner for all your optical needs. Explore the possibilities with our Ti crystals and experience the Shape Optics difference.
For more information, please visit our website at Shape Optics or contact us directly to discuss your specific requirements.
