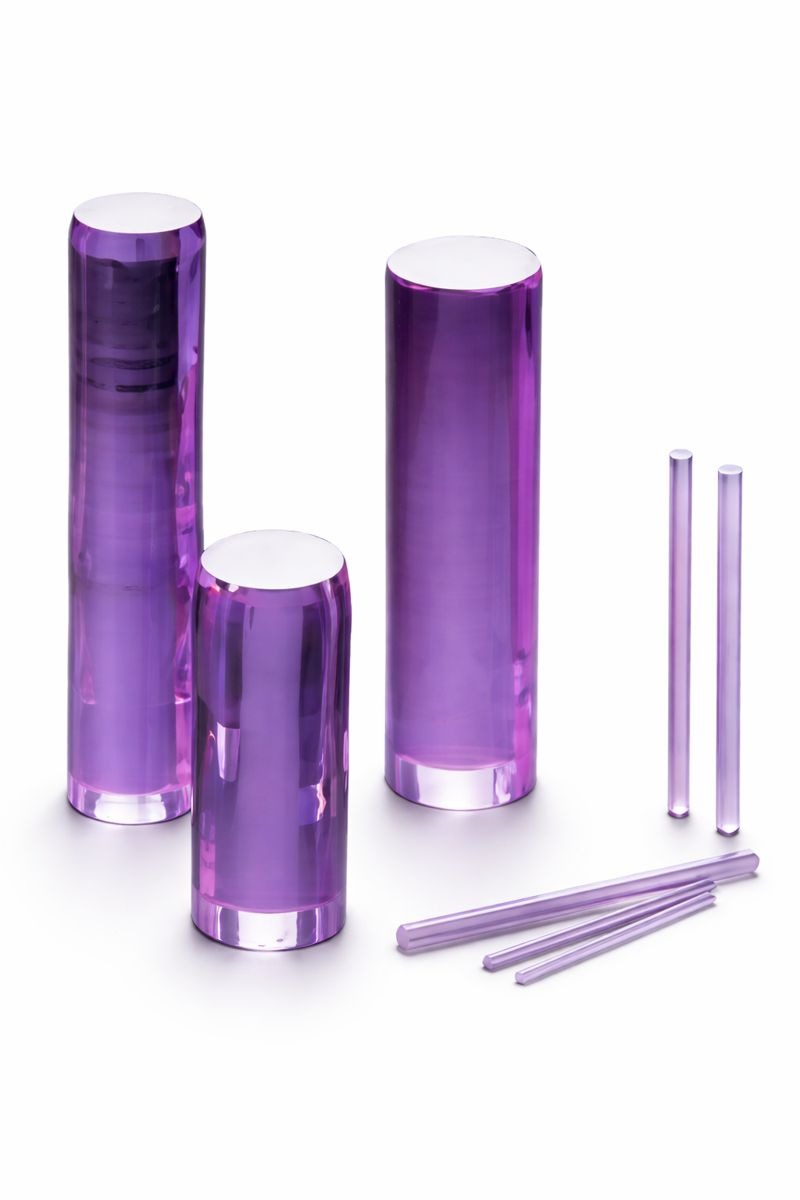

Nd:YAG laser crystal

Key Features:

  • High Optical Gain: Nd

    crystals offer excellent optical gain, making them ideal for laser applications.

  • Broad Absorption and Emission Bands: These crystals have broad absorption and emission bands, suitable for efficient diode pumping.
  • High Thermal Conductivity: Nd

    exhibits high thermal conductivity, enhancing its performance in high-power laser systems.

  • Good Mechanical Properties: The crystals are robust and can withstand mechanical stress, ensuring longevity and reliability in various environments.
  • Efficient Fluorescence Lifetime: Nd

    provides a long fluorescence lifetime, which is beneficial for laser operations.

$0.00$3,318.00

$150.50
$185.50
$227.50
$371.00
$371.00
$623.00
$938.00
$1,540.00
$3,318.00
$3,318.00
$231.00
$0.00
$0.00

Description

Items Notes

  • Size, mm: The first lists the dimensions of the crystal in millimeters; W*H*L(mm)
  • θ, deg: The second represents the phase-matching angle θ in degrees. This is the angle at which phase matching occurs for nonlinear optical processes.
  • φ, deg: The third represents the azimuthal angle φ in degrees. This angle specifies the orientation of the crystal axis in the plane perpendicular to the propagation direction.
  • Coating: The fourth describes the coating applied to the crystal, specifying the wavelength range for which the coating is optimized (e.g., P/P @ 400-800 nm).



Description: Neodymium-doped Yttrium Aluminum Garnet (Nd ) is a highly efficient laser crystal known for its excellent optical and physical properties. It is widely used in laser systems for various applications, including medical, industrial, and scientific research.

Physical and Laser Properties of Nd:YAG laser crystal:

Property Value
Formula Y2.97_{2.97}Nd0.03_{0.03}Al5_5O12_{12}
Crystal Structure Cubic
Density 4.55 g/cm³
Melting Point 1970 °C
Mohs Hardness 8.5
Transition 4F3/2→4I11/2^4F_{3/2} \rightarrow ^4I_{11/2} @ 1064 nm
Fluorescence Lifetime 230 µs for 1064 nm
Thermal Conductivity 0.14 Wcm−1^{-1}K−1^{-1}
Specific Heat 0.59 Jg−1^{-1}K−1^{-1}
Thermal Expansion 6.9 × 10−6^{-6} °C−1^{-1}
∂n/∂t\partial n / \partial t 7.3 × 10−6^{-6} °C−1^{-1}
Young’s Modulus 3.17 × 104^4 Kg/mm²
Poisson Ratio 0.25
Thermal Shock Resistance 790 Wm−1^{-1}
Refractive Index 1.818 @ 1064 nm

Specifications of Standard of Nd Laser Rods

Specification Value
Nd Doping Level 0.8% or 1.1%
Orientation <111> crystalline direction
Surface Quality 10 – 5 scratch & dig (MIL-PRF-13830B)
Surface Flatness λ/10 at 633 nm
Parallelism < 10 arcsec
Perpendicularity < 5 arcmin for plano/plano ends
Diameter Tolerance +0 / -0.05 mm
Length Tolerance +1 / -0.5 mm
Clear Aperture > 90 % of full aperture
Chamfers 0.1 mm at 45 deg
Coating both sides coated AR @ 1064 nm, R < 0.2%, AOI = 0 deg
Barrel Grooving all dia 6.35, 8, 10, 12 mm rods with barrel grooving

Applications:

  • Laser Systems: Ideal for high-power and high-efficiency laser systems.
  • Medical Devices: Used in various medical laser devices for treatments and surgeries.
  • Industrial Processing: Suitable for cutting, welding, and marking applications.
  • Scientific Research: Employed in research settings for various optical experiments and innovations.

Processing and Handling:

  • Surface Protection: To maintain the integrity of Nd crystals, a protective coating may be applied during handling and processing.
  • Machining: Requires careful handling to avoid damage to the crystal structure during milling or other machining processes.

Why Choose Shape Optics on Nd:YAG laser crystal?

At Shape Optics, we pride ourselves on our comprehensive expertise and advanced capabilities in the field of optical materials and components. Our commitment to quality and innovation has positioned us as a leader in the industry, serving a diverse range of applications from scientific research to industrial manufacturing.

  • Advanced Manufacturing: Shape Optics utilizes state-of-the-art equipment and techniques to ensure the highest precision and quality in our products. Our manufacturing processes are designed to meet the stringent demands of modern optical applications.
  • Customization: We understand that every project is unique. Shape Optics offers customized solutions tailored to meet the specific needs of our clients. Whether you require specific dimensions, coatings, or performance characteristics, we have the flexibility to deliver.
  • Quality Assurance: Our rigorous quality control processes ensure that every product we deliver meets the highest standards of performance and reliability. Shape Optics is committed to continuous improvement and excellence in all aspects of our operations.
  • Expertise and Support: With a team of highly skilled professionals, Shape Optics provides unparalleled technical support and expertise. Our team is dedicated to helping you achieve optimal results in your optical applications.
  • Global Reach: Shape Optics serves clients worldwide, providing reliable and timely delivery of products. Our global network ensures that we can meet your needs wherever you are located.
  • Sustainability and Responsibility: Shape Optics is committed to sustainable practices and responsible manufacturing. We strive to minimize our environmental impact while delivering high-quality optical solutions.

Nd:YAG laser crystal  from Shape Optics represent the pinnacle of quality and performance in optical materials. With our advanced capabilities, commitment to quality, and customer-centric approach, Shape Optics is your ideal partner for all your optical needs. Explore the possibilities with our Nd crystals and experience the Shape Optics difference.

For more information, please visit our website at Shape Optics or contact us directly to discuss your specific requirements.
