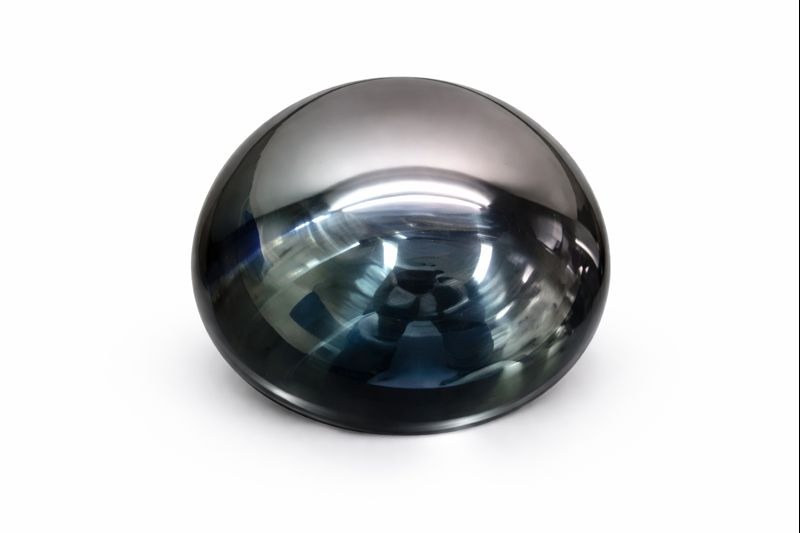

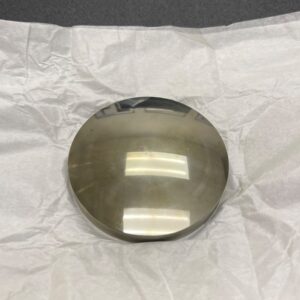

germanium dome

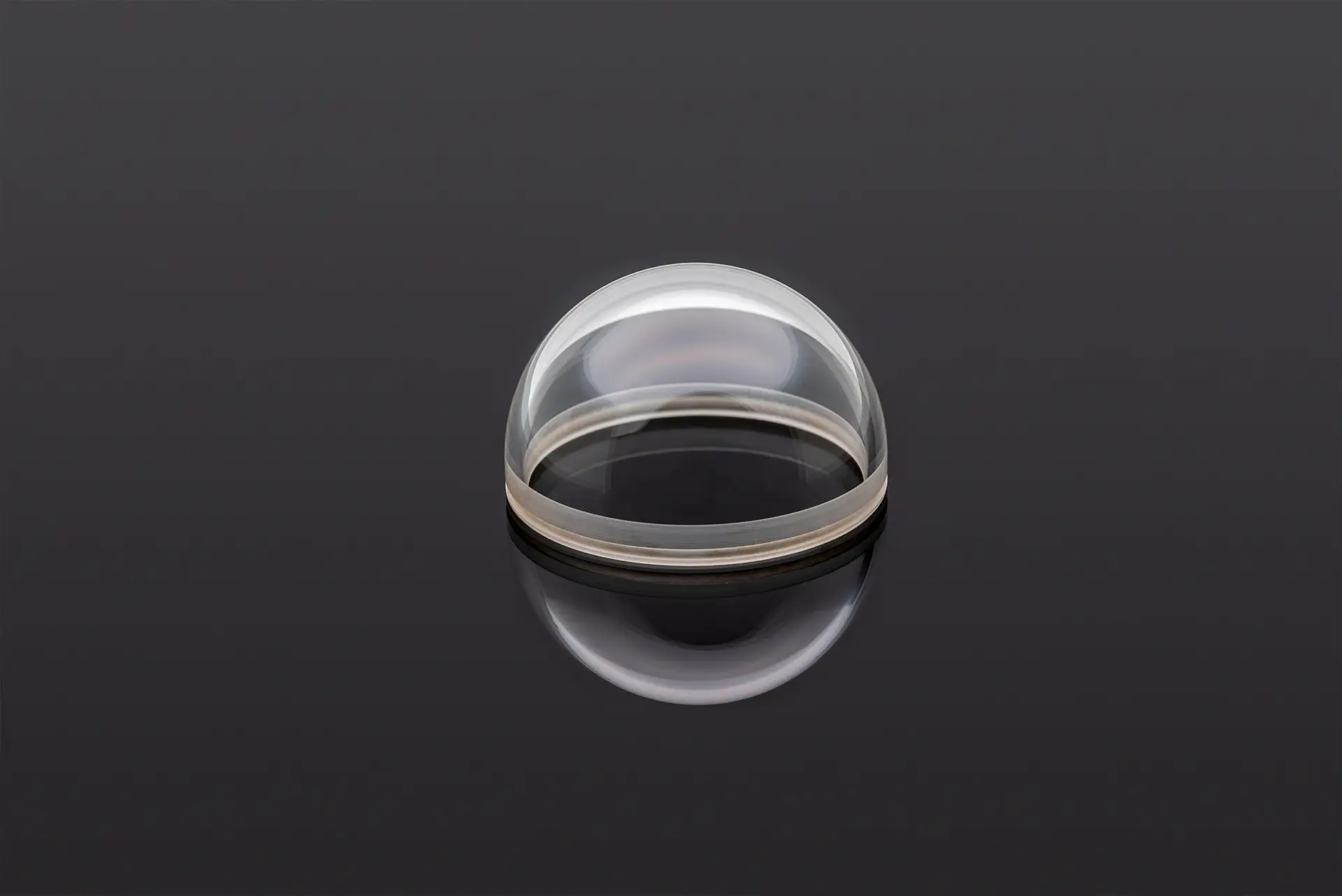

optical dome

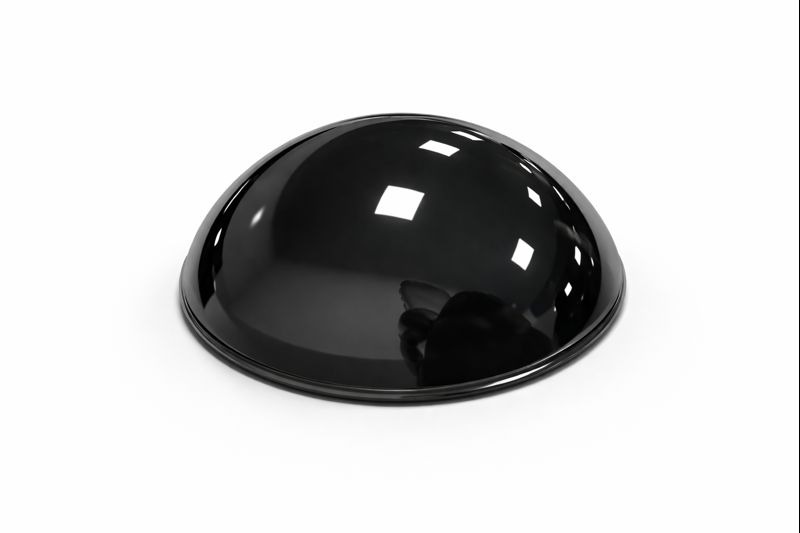

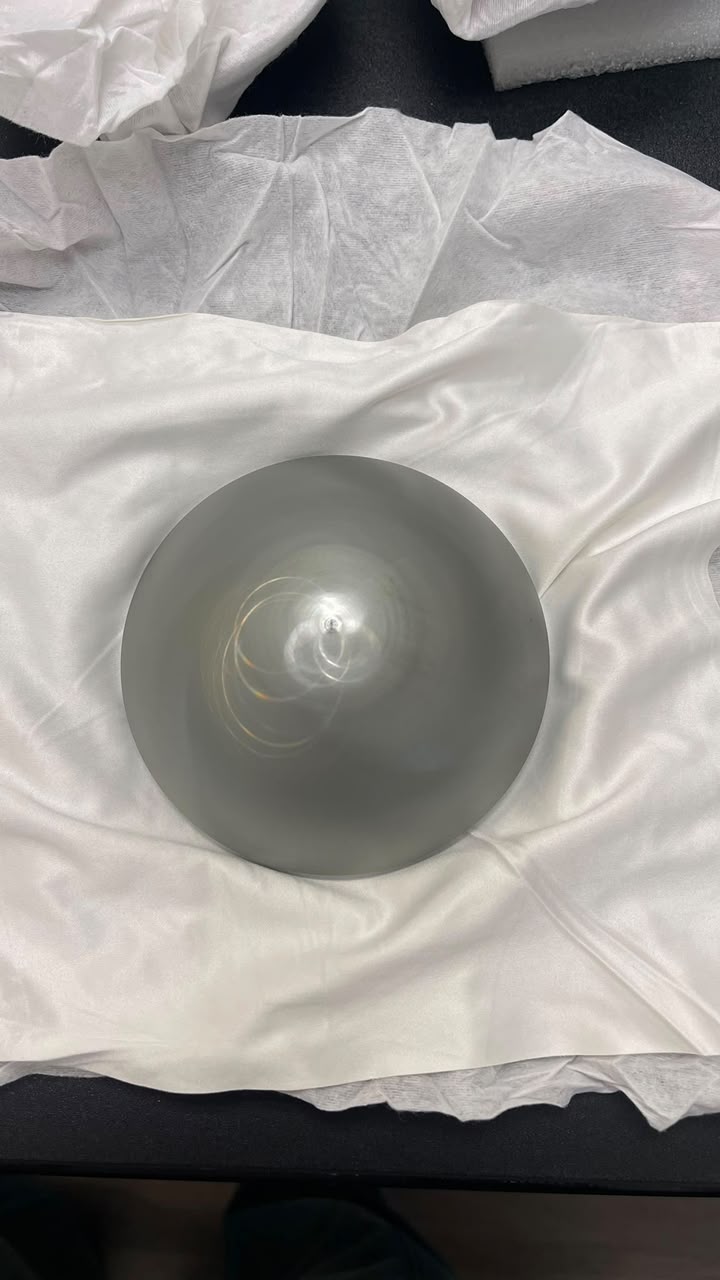

germanium dome

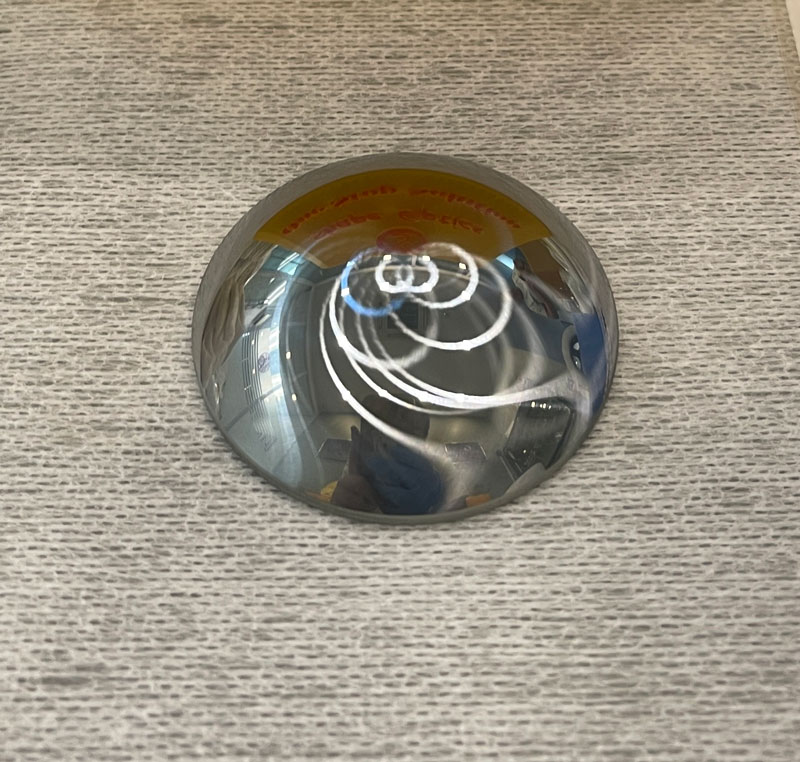

germanium dome

Germanium Dome Customization

Customization Capabilities

  • Custom Sizes and Shapes: We manufacture Germanium domes in various sizes and geometries to meet your exact specifications. Whether you need small domes for compact devices or larger domes for extensive systems, we ensure precise and consistent production.
  • Surface Finishes: Our domes come with high-quality surface finishes, including polished surfaces for minimal scattering and maximum clarity. Each dome is crafted to meet stringent optical standards.
  • Precision Tolerances: Utilizing advanced manufacturing techniques, we achieve tight tolerances on dimensions, surface curvature, and thickness, ensuring optimal performance in your optical systems.
  • Specialized Coatings: Enhance your Germanium domes with our range of coatings. We offer anti-reflective (AR) coatings for improved transmission, diamond-like carbon (DLC) coatings for increased durability, and other custom coatings tailored to your specific needs.

Original price was: $404.00.Current price is: $354.00.

Important Remark

The minimum cart order value is USD 2,000. Stock and lead time are subject to confirmation, and listed prices are for reference only—please email us to confirm availability and final pricing before ordering.

Description

Welcome to our Germanium Dome Customization service, where precision engineering meets innovative design to provide high-quality Germanium domes tailored to your specific requirements. Our expertise in Germanium fabrication ensures that each dome meets the highest standards of performance and durability, suitable for a wide range of infrared and optical applications.



Customization Capabilities

  • Custom Sizes and Shapes: We manufacture Germanium domes in various sizes and geometries to meet your exact specifications. Whether you need small domes for compact devices or larger domes for extensive systems, we ensure precise and consistent production.
  • Surface Finishes: Our domes come with high-quality surface finishes, including polished surfaces for minimal scattering and maximum clarity. Each dome is crafted to meet stringent optical standards.
  • Precision Tolerances: Utilizing advanced manufacturing techniques, we achieve tight tolerances on dimensions, surface curvature, and thickness, ensuring optimal performance in your optical systems.
  • Specialized Coatings: Enhance your Germanium domes with our range of coatings. We offer anti-reflective (AR) coatings for improved transmission, diamond-like carbon (DLC) coatings for increased durability, and other custom coatings tailored to your specific needs.



Key Products

  • Infrared Domes: Custom-designed Germanium domes optimized for infrared (IR) applications, providing high transmittance and durability.
  • High-Durability Domes: With coatings such as DLC, these domes are designed to withstand harsh environments and maintain performance under extreme conditions.
  • Precision Optical Domes: Ideal for applications requiring high optical clarity and precision, such as surveillance and targeting systems.



Applications

  • Infrared Imaging: Germanium domes are essential components in thermal cameras and night vision devices, providing clear and precise imaging in the infrared spectrum.
  • Aerospace and Defense: Employed in sophisticated surveillance and targeting systems, Germanium domes offer reliable performance in extreme conditions and high-speed environments.
  • Optical Systems: Used in advanced optical systems that require precise control over light transmission and protection of sensitive components.
  • Industrial Applications: Suitable for process monitoring and quality control systems that require accurate infrared measurement and imaging.



Why Choose Our Germanium Dome Customization Service?

  • Expertise: Our team of optical engineers and technicians has extensive experience in designing and fabricating custom Germanium domes.
  • Quality Assurance: We adhere to strict quality control standards, ensuring that every dome meets or exceeds industry specifications.
  • Advanced Technology: We utilize state-of-the-art equipment and processes to deliver high precision and reliability in every component we produce.
  • Customer-Centric Approach: We work closely with our clients to understand their specific needs and provide customized solutions that deliver superior performance.



Ordering Process

  1. Consultation: Contact us to discuss your specific requirements and project details.
  2. Design and Prototyping: Our engineers will design your custom Germanium domes using advanced CAD software and create prototypes for evaluation.
  3. Manufacturing: Once the design is approved, we will manufacture the domes using our high-precision equipment.
  4. Quality Inspection: Each dome undergoes thorough quality inspection to ensure it meets your specifications.
  5. Delivery: We will ship your custom Germanium domes, ensuring they arrive safely and on time.

Additional information

Weight 1 kg
Dimensions 12 × 10 × 8 cm
  • Material: Optical-Grade Monocrystalline Germanium (high resistivity)
  • Electrical Resistivity: 5 – 40 Ω·cm (typical for IR optics)
  • Diameter: Ranges from 12mm to 380mm
  • Length: Customizable
  • Crystal Purity: Between 99.999% and 99.9999%
  • Surface Roughness: Ra max 0.2μm to 4.0μm (depending on finish)
  • Refractive Index: [email protected]μm
  • Absorptance: ≤[email protected]μm
  • Thickness Tolerance: ± 0.10mm
  • Diameter Tolerance: +0.00/-0.05mm
  • Edge Finish: Finely ground
  • Surface Quality: 60/40 Scratch/Dig
  • Surface Flatness: ≤ 5 Fringes@633nm
  • Parallelism: ≤ 3 arc minutes
  • Orientation: <111>
  • Transmission Range: 3 – 14 µm (material-dependent, thickness & resistivity dependent)
  • Coating Specification: Upon Request, Anti-Reflective/Diamond-Like Carbon (AR/DLC)
  • Coating: AR coated from 3-14 microns, or DLC (Diamond-Like Carbon) in black/dark grey colour, with average transparency (Tavg) greater than 80%
  • Double-sided Anti-Reflective coating with an average transparency (Tavg) greater than 85%
A graph with a line drawn on it Description automatically generated

This graph provides a visual representation of how the transmission behaves across the specified wavelength range for a 1mm thick Germanium (monocrystalline) window. There is a sharp increase to 50% transmission starting from 2 µm and remains constant through 16 µm.

Germanium Physical Properties
the refractive index of a material Germanium
optical characteristics of Germanium

Shape Optics Diamond-Like Carbon (DLC) Coated Germanium Windows are engineered for exceptional durability, environmental resistance, and long-term infrared performance in demanding applications. Each window features a high-efficiency broadband anti-reflection (AR) coating on one surface to maximize infrared transmission, while the opposite surface is protected with a hard, abrasion-resistant DLC coating. This dual-coating configuration delivers excellent optical throughput while providing superior protection against mechanical wear and harsh environmental exposure. The DLC-coated surface is designed to withstand extreme temperature cycling from −80°F to +160°F, 24 hours of continuous salt spray, 24-hour salt immersion, and up to 5,000 wiper oscillations using a sand-and-slurry mixture. In addition, these windows meet the severe abrasion resistance requirements of MIL-C-675C, making them well suited for thermal imaging, FLIR systems, airborne sensors, and other infrared applications operating in rugged environments.

Shape Optics offers Germanium (Ge) windows with three anti-reflection (AR) coating options to suit different infrared (IR) applications: a 3–5 µm coating for mid-infrared (MWIR) use, a 3–12 µm broadband coating for multispectral systems, and an 8–12 µm coating optimized for thermal imaging. Because germanium has a very high refractive index—approximately 4.0 across the 2–14 µm wavelength range—uncoated surfaces exhibit high Fresnel reflection losses. Applying a properly designed AR coating is therefore essential to significantly reduce surface reflections and achieve high transmission within the required spectral band, ensuring optimal performance of infrared optical systems.

3 - 5μm coating for mid-infrared of Germanium

Typical transmission of a 3mm thick Ge window with BBAR (3000-5000nm) coating at 0° AOI. It indicates the coating design wavelength range, with the following specification: Ravg <3% @ 3000 - 5000nm

3mm thick Ge window

Typical transmission of a 3mm thick Ge window with BBAR (3000-12000nm) coating at 0° AOI. It indicates the coating design wavelength range, with the following specification: Ravg <5.0% @ 3 - 12μm

3mm thick Ge window with BBAR (8000-12000nm)

Typical transmission of a 3mm thick Ge window with BBAR (8000-12000nm) coating at 0° AOI. It indicates the coating design wavelength range, with the following specification: Ravg <3.0% @ 8 - 12μm

Germanium is prone to thermal runaway, a condition where its transmission efficiency declines as temperatures rise. Therefore, it is recommended to operate Shape Optics Germanium Windows at temperatures below 100°C to maintain optimal performance. Additionally, with a high density of 5.33 g/cm³, germanium windows should be carefully integrated into designs where weight sensitivity is a factor.

The material’s Knoop Hardness, at 780, is roughly double that of Magnesium Fluoride, making germanium windows exceptionally suitable for demanding IR applications where durable optics are essential.

  • Adhesion Test Compliant with MIL-C-675C military standards, an adhesion test involved applying a tape that meets LT-90 specifications onto the lens film layer. The tape was affixed fully and then removed vertically. This procedure was performed three times, resulting in no blistering or peeling.
  • Temperature Test In line with MIL-C-675C specifications, test pieces were subjected to temperatures of -62±1℃ and 71±1℃. After maintaining them at room temperature (16℃~32℃) for two hours, the adhesion test was repeated, confirming no film detachment.
  • Abrasion Resistance Test Conforming to MIL-C-675C and CCC-C-440 standards, the abrasion resistance test involved a gauze tester applying a minimum force of 1.0 lbs (0.45 kg) to the film. This was repeated 25 times with gauze widths of 1/4 inch (6.4mm) and 3/8 inch (9.5mm), ensuring no damage occurred to the film surface.
  • Humidity Test Under MIL-C-675C criteria, the test piece was placed in a controlled temperature and humidity chamber set to 49 ±2℃ and 95%~100% humidity for 24 hours. The film remained intact, with no peeling, scratches, or other defects.
  • Solvent and Cleaning Testing Following MIL-C-675C specifications, test pieces were exposed to room temperature conditions (16℃~32℃) and tested with acetone and alcohol for at least 10 minutes each. After air drying and subsequent cleaning with a cotton cloth soaked in alcohol, the film surface showed no signs of peeling or scratches.
  • Salt Spray Test After 100 hours in a 35°C environment with a 5% saltwater concentration, the film showed no signs of damage.

Polycrystalline Germanium

  • Structure: Polycrystalline germanium is composed of multiple small crystal grains, each with its own lattice orientation. Grain boundaries exist between these crystals.
  • Production: It is easier and more cost-effective to manufacture than monocrystalline germanium, as it does not require highly controlled single-crystal growth processes.
  • Electrical Performance: Grain boundaries scatter charge carriers, which reduces carrier mobility. As a result, polycrystalline germanium is less suitable for high-speed or high-efficiency electronic devices.
  • Optical Performance: For infrared optical applications, grain boundaries have minimal impact on IR transmission, especially in the MWIR and LWIR ranges. When purity, resistivity, and surface quality are properly controlled, polycrystalline germanium can perform very well optically.
  • Applications: Infrared optical windows and lenses, thermal imaging systems, cost-sensitive IR applications, some photovoltaic and detector-related uses where ultra-high electronic performance is not required.



Monocrystalline Germanium

  • Structure: Monocrystalline germanium consists of a single, continuous crystal lattice with no grain boundaries, resulting in highly uniform material properties.
  • Production: Manufacturing requires precise crystal growth techniques (such as Czochralski or Bridgman methods), making it more complex and expensive.
  • Electrical Performance: The absence of grain boundaries provides higher charge carrier mobility and lower defect density, making monocrystalline germanium ideal for demanding electronic and optoelectronic applications.
  • Optical Performance: Monocrystalline germanium offers excellent infrared transmission optically. However, for most IR window and lens applications, its optical advantage over polycrystalline germanium is limited, and often unnecessary unless the system also relies on electronic functionality.
  • Applications: High-speed transistors and semiconductor devices, infrared detectors and optoelectronic components, high-efficiency photovoltaic and research applications, specialized IR systems requiring combined optical and electronic performance.

N-type Germanium

  • Doping: Doped with group V elements such as phosphorus, arsenic, or antimony, which have more valence electrons than germanium.
  • Charge Carriers: The majority charge carriers are electrons, while holes are the minority carriers.
  • Electrical Behavior: When an electric field is applied, electrons drift toward the positive terminal (anode). This excess of negative charge carriers gives the material its N-type designation.
  • Applications: Used in various electronic components, including diodes, transistors, and integrated circuits.



P-type Germanium

  • Doping: doped with group III elements such as boron, gallium, or indium, which have fewer valence electrons than germanium.
  • Charge Carriers: The majority charge carriers are holes, which behave as positive charge carriers.
  • Electrical Behavior: Under an applied electric field, holes drift toward the negative terminal (cathode). This dominance of positive carriers defines the material as P-type.
  • Applications: Used in electronic components, often in conjunction with N-type materials to create P-N junctions, which are essential for diodes, transistors, and solar cells.



Comparison of P-type and N-type Semiconductors

FeatureP-Type GermaniumN-Type Germanium
Dopant ElementsBoron, Gallium, IndiumPhosphorus, Arsenic, Antimony
Majority CarriersHolesElectrons
Minority CarriersElectronsHoles
Carrier Drift Direction (Electric Field)Holes → negative terminalElectrons → positive terminal
Conventional Current DirectionPositive → negative terminalPositive → negative terminal
Typical UseP–N junctions, detectors, solar cellsDiodes, transistors, ICs

Note: While electrons and holes move in opposite physical directions, conventional current always flows from the positive terminal to the negative terminal, regardless of whether the semiconductor is P-type or N-type.
