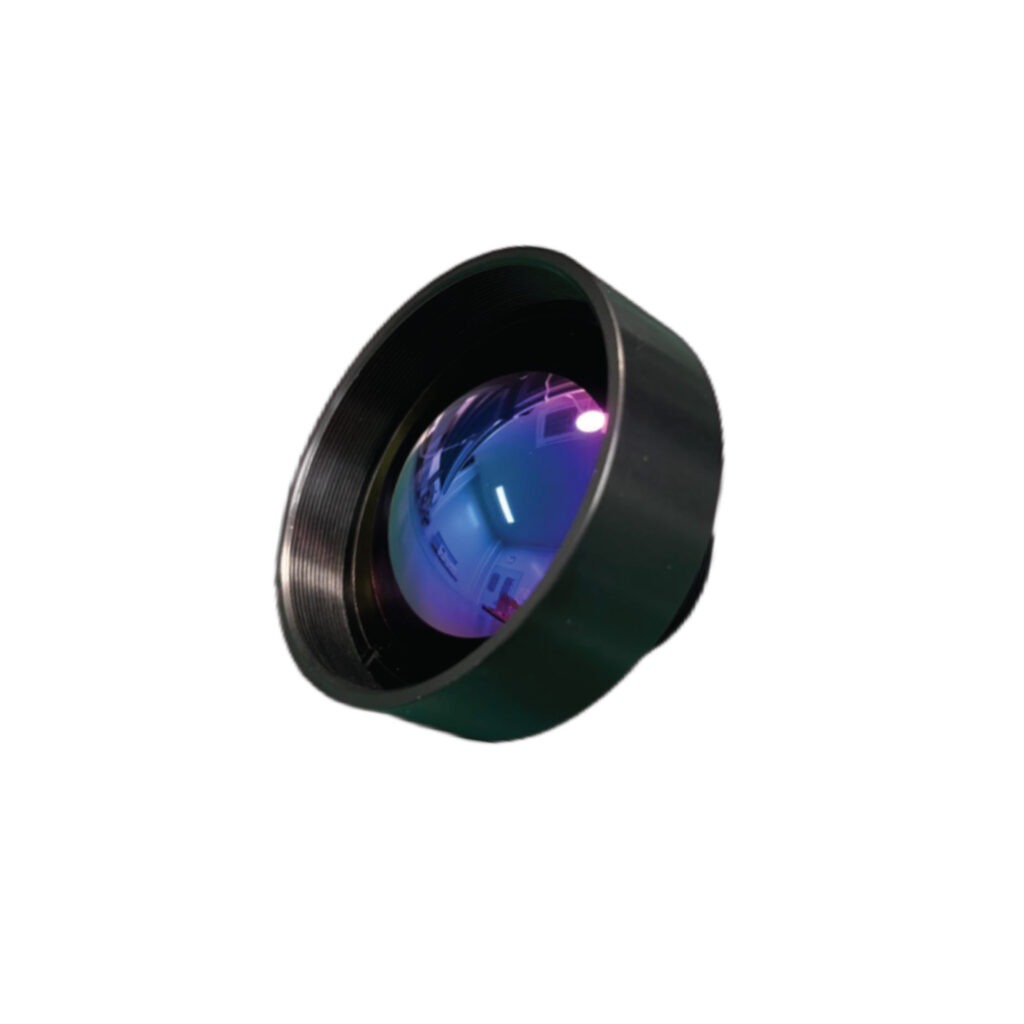

The Medium-wave Cooled Fixed-focus Lens is specifically designed for high-performance thermal imaging systems that operate within the medium-wave infrared (MWIR) spectrum. These lenses are engineered for use in cooled infrared systems, providing enhanced sensitivity and precision for capturing thermal data. With a fixed-focus design, these lenses ensure that your thermal imaging system delivers sharp and clear images without the need for complex adjustments. Ideal for a variety of applications, these lenses are optimized for industrial, military, and scientific uses where high resolution and consistent performance are critical.
Key Features
- Cooled Design: Optimized for use with cooled detectors to improve image quality and thermal sensitivity.
- Fixed Focus: Designed for fixed focal length applications, ensuring ease of use and reliable performance.
- High Resolution: Provides clear imaging with resolutions up to 1280×1024 for larger focal lengths.
- Durability: Built to withstand harsh environments and demanding applications, ensuring long-term reliability.
- Wide Focal Length Range: Available in multiple focal lengths, offering versatility for different imaging needs.
Applications
- Military & Defense: Used in surveillance, reconnaissance, and targeting systems where clear and precise thermal imaging is essential.
- Industrial Inspection: Ideal for monitoring machinery, electrical components, and other systems where temperature variations need to be accurately detected.
- Scientific Research: Perfect for applications in material testing, environmental monitoring, and other research areas requiring high-quality thermal imaging.
- Search and Rescue: Provides clear thermal images in low-visibility environments, assisting in rescue missions to locate heat signatures.
Available Models
| Model | Focal Length (mm) | F-No. | PX | PY | Pitch |
|---|---|---|---|---|---|
| M25F2-615 | 25 | 2 | 640 | 512 | 15 |
| M30F4-615 | 30 | 4 | 640 | 512 | 15 |
| M50F2-615 | 50 | 2 | 640 | 512 | 15 |
| M50F4-615 | 50 | 4 | 640 | 512 | 15 |
| M100F2-615 | 100 | 2 | 640 | 512 | 15 |
| M100F2-8015 | 100 | 2 | 1280 | 1024 | 15 |
| M100F4-615 | 100 | 4 | 640 | 512 | 15 |
Why Choose Our Optics?
Shape Optics offers a range of Medium-wave Cooled Fixed-focus Lenses that deliver exceptional thermal sensitivity and precision for your optical systems. Our lenses are designed to perform reliably in even the harshest conditions, ensuring clear thermal images and high accuracy in applications that require fast, non-invasive temperature measurements. Whether you’re working in defense, industrial inspection, or research, our lenses provide the quality and consistency you need.
Ready to enhance your thermal imaging system? Contact us today to discuss which model is best suited for your needs.
