Infrared light for night vision scopes refers to the spectrum of light that is invisible to the naked eye but detectable by night vision devices. This technology enhances visibility in low-light or no-light conditions by illuminating scenes with infrared light, which night vision scopes then convert into a visible image.
Critical Specifications of Infrared Light for Night Vision Scopes/infrared telescope
- Wavelength: Typically measured in nanometers (nm), with most night vision IR illuminators operating in the near-infrared range of 700 nm to 1000 nm. The specific wavelength can affect compatibility with different night vision devices.
- Power Output: Determines the brightness and range of the infrared illumination. Higher power output can illuminate targets at greater distances.
- Beam Angle: This is the spread of the light beam. A wider angle covers more area but may provide less detailed illumination at distance, while a narrow beam focuses the light for long-range visibility.
- Battery Life: Important for determining how long the device can be operated in the field.
- Durability: As with any outdoor or tactical gear, resistance to water, dust, and impact is crucial.
- Mounting Options: Compatibility with various night vision scopes and the ease of attaching or detaching the IR illuminator.
Applications of Infrared Light for Night Vision Scopes
Infrared lights are used extensively in:
- Security and Surveillance: Enhancing the capabilities of CCTV and other surveillance systems during nighttime.
- Military and Law Enforcement: For covert operations where maintaining darkness is crucial while still requiring visibility.
- Wildlife Observation and Hunting: Allows for observation of animals without disturbing them or altering their natural behavior.
- Search and Rescue: Enhances the ability to find individuals in dark environments or in conditions where visibility is naturally impaired.
How to Select Infrared Light for Night Vision Scopes
When choosing an infrared light for a night vision scope, consider the following:
- Compatibility: Ensure that the wavelength and power output of the IR illuminator are compatible with your night vision device.
- Intended Use: Determine what distance and beam spread you will need based on your typical use cases, such as close-range security work or long-range field observations.
- Portability: Consider the size and weight of the IR illuminator, especially if it will be used on handheld or head-mounted systems.
- Quality and Reliability: Opt for devices with solid construction and reliable performance, especially if they will be used in harsh conditions.
- Budget: Prices can vary widely based on the features and brand, so it’s important to balance cost with the necessary specifications for your needs.

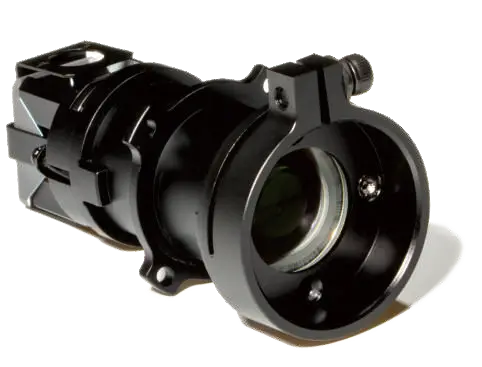

The SOTMQ series is a lightweight and versatile infrared scope/infrared telescope, distinguished by its use of advanced fileless film technology. This technology enhances the scope’s sensitivity, refresh rate, and stability, making it capable of continuous full-scene imaging 24 hours a day. It is ideal for a wide range of applications, including reconnaissance observation, outdoor hunting, exploration, security surveillance, maritime operations, and the execution of special tasks. The scope’s robust performance and adaptability make it suitable for various demanding environments and situations.
Features
- Incorporates no-block technology.
- Features rapid activation.
- Offers various imaging modes.
- Provides up to 8 hours of extended standby time.
| Item No | SOTMQ-384-35/50 | SOTMQ-640-35/50 |
| Resolution, Pixels | ||
| Detector | Uncooled detector | |
| Resolution | 384×288 | 640×512 |
| Pixels | 12μm | |
| Wavelength | 8～14μm | 8～14μm |
| Parameter of lens | ||
| NETD | ≤35mk | |
| Focal length | 35mm、50mm | 35mm、50mm |
| Aperture | F1.0 | |
| Field of view(35mm) | 7.5°x5.7°(±5%) | 12.5°x10.0°(±5%) |
| Display | ||
| Frame rate, HZ | 50HZ | |
| OLED | 0.39inch | |
| Resolution | 1024×768 | |
| Digital zoom | x1、x2、x4 | |
| Image | ||
| Polarity display | Black Hot, White Hot, Red Hot, False Color, Sky, Stroke | |
| Display type | Monocular display, adjustable by eyepiece diopter | |
| Power source | ||
| Battery type | Two 18650 Li-Ion batteries | |
| Standby time | ≥8h(Room temp) | |
| Operating distance (35mm) | ||
| identification range | Human(1.7×0.5m)1200m，Car(2.3×2.3m)1800m | Human(1.7×0.5m)1500m，Car(2.3×2.3m)2200m |
| Recognition range | Human(1.7×0.5m)500m，Car(2.3×2.3m)800m | Human(1.7×0.5m)800m，Car(2.3×2.3m)1100m |
| Interface | ||
| Data export/CVBS output | TYPE-C | |
| Storage | Built-in on-board emmc chip high-speed storage (32GB) | |
| Video output | WiFi | |
| Environmental adaptation | ||
| Operating temperature | Temp. Range -40℃~60℃ | |
| Storage temperature | Temp. Range -45℃~65℃ | |
| Waterproof | IP67 | |
| Physical/mechanical properties | ||
| Weight(including battery) | ≤600g(Including battery) | ≤650g(Including battery) |
| Dimensions | 176mm(L)× 80mm(W)×72mm(Height with support) | |
| Impact | 500G(1200G Optional) | |
Singapore ShapeOptics is a company focused on the research and development, design, production, and sales of products that primarily utilize germanium and other infrared optical materials. Their product range includes infrared lenses, optical dome covers, modules, infrared telescope as well as observation and night vision equipment. The company’s offerings are extensively used across various sectors including military, equipment testing, security, industrial, electrical, automotive, medical, and consumer fields.
