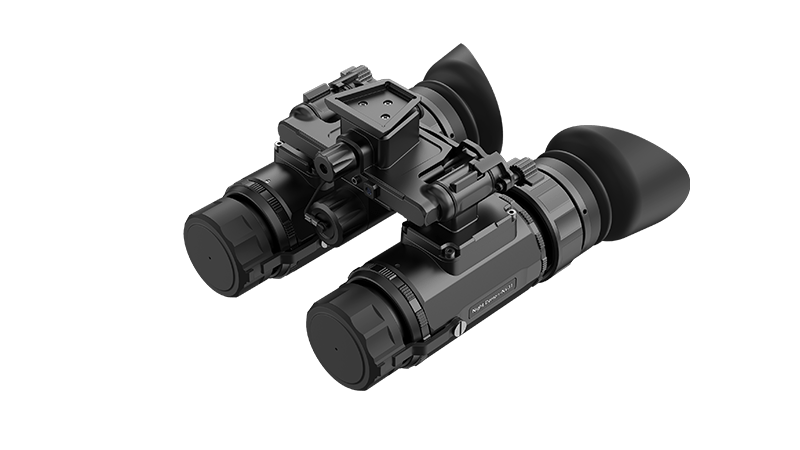

The Shape Optics Night Vision Binocular is a compact, lightweight, and highly portable device, designed to perform in low-light environments. With up to 15 hours of battery life, IP67 protection, and an 850nm infrared illuminator, it is an excellent tool for hunting, animal observation, and outdoor rescue. Its intelligent auto screen-off function ensures safety and concealment, while the high-quality imaging provides clear visuals even in near-pitch darkness.

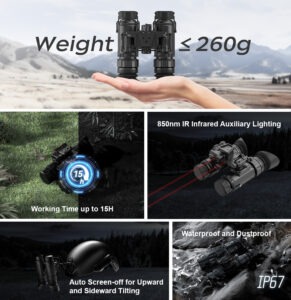

- Small Size and Low Weight: Compact and ergonomic design, making it ideal for hunting, wildlife observation, and other outdoor activities.
- Battery Life up to 15 Hours: Long battery life allows uninterrupted use during extended activities, including long stakeouts or nighttime observation, without the need for frequent recharging.
- Strong Light Protection: The device includes strong light protection, automatically cutting off power when it detects bright light, preventing internal burns and protecting the device during varying light conditions.
- Auto Screen-Off for Upward and Sideward Tilting: The auto screen-off feature enhances concealment by automatically turning off the screen when the device is tilted upwards or sideways, preventing light leakage and maintaining user security.
- 850nm IR Infrared Auxiliary Lighting: Equipped with an 850nm infrared illuminator, it ensures clear, bright images even in extremely low light or pitch-black environments. This makes the device perfect for nighttime observations and hunting in dark settings.
- IP67 Waterproof and Dustproof: The IP67-rated protection ensures that the binoculars are waterproof and dustproof, making them reliable for use in harsh environments, from rainy conditions to dusty deserts and humid forests.
Specification | Value |
Focal Length | 26.8mm |
Focus Mode | 250mm ~ ∞ |
Field of View | 40° |
Magnification | 1x |
Eyepiece Diopter | -5 ~ +5 |
Eye-Relief | 25mm |
Exit Pupil | 14mm |
Performance Parameters
- Image Intensifier Tube: GEN 2+
- Image Tube Compatibility: MX10160 Contact, NNVT 3-Wire
- LED Indicator (In the Field of View): Infrared Auxiliary Illumination
- IR Illuminator: 850nm
- Flip-UP Screen Off: Yes
- Flip-Side Screen Off: Yes
- Bright Light Cut-off: Yes
- Power Indicator: Yes
- IPD Adjustment: 56-72mm
Night Vision Intensifier
- Limiting Resolution: ≥ 64lp/mm
- Noise Ratio: 28
- Phosphor: P43 (Green Phosphor) / P45 (White Phosphor)
Power Supply
- Power: Removable Battery / External Power Supply
- Battery Type: Single AA Battery
- Battery Operating Time: 15 hours
Physical Parameters
- Interface: L4G24
- Protection Level: IP67
- Operation Temperature: -40°C ~ +50°C
- Dimension: 113 × 100 × 85 mm
- Weight (Battery excluded): ≤ 570g
- Outdoor Hunting
- Animal Observation
- Outdoor Rescue
