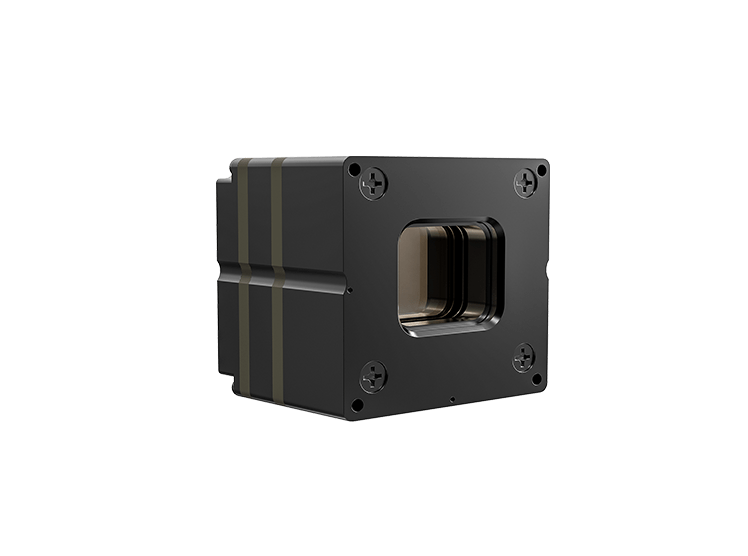

The SOTFE series uncooled thermal module is equipped with a highly reliable infrared detector, designed for excellent shock and impact resistance. It features independently developed core components, including lenses, detectors, and structures, ensuring both technical security and autonomous reliability. Seamlessly integrating hardware and software, it effectively compensates for energy drift, ensuring maximum image clarity and smoothness. With customizable support for various interfaces and a wide range of infrared lens options, it caters to diverse application scenarios.
- Reliable Infrared Detector: Ensures robust performance even in challenging environments.
- Shock & Impact Resistance: Ideal for applications where durability is essential.
- Seamless Integration: Combines hardware and software for enhanced performance and reliability.
- Customizable: Offers flexible configurations with a variety of infrared lenses and interfaces.
- High Image Clarity: Effectively compensates for energy drift, ensuring sharp, clear images.
- Versatile Application: Suitable for integration in multiple electro-optical systems and devices.
Thermal Module
Parameters | Details |
Detector Type | Vox |
Response Waveband | 8 ~ 14μm |
Resolution | 384×288 |
Pixel Pitch | 12μm |
NETD | ≤ 50mk, @F1.0, 300K |
Frame Rate | ≤ 50Hz |
Focal Length | 9.1/13/19/25/35/50mm |
Field of View | 9.1mm: 28.9° X 21.62° |
Aperture | F1.0 |
Focusing Method | Manual |
Image Function
- Image Correction: Shutter/Shutterless (Selectable)
- Image Processing: Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancement
- Brightness Contrast Adjustment: Auto/Manual
- Digital Zoom: 1-8x
- Reticle: Show/Hide/Move
- Palettes: Whitehot / Blackhot / Iron / Rainbow
Power Supply
- Power Supply Protection: Supports Over-voltage, Under-voltage, and Reverse Connection Protection
- Power Input: DC 3.8 ~ 5.5V
- Power Consumption: ≤ 1W
Interface
- Analog Video: CVBS
- Digital Video: BT.656/LVDS/MIPI/Cameralink/SDI/ETH
- Communication Interface: UART/I2C
Physical Parameter
- Vibratory: 6.06g, Random Vibration, All Axial Directions
- Shock Resistance: 200g, 4ms, Back Peak Sawtooth, 3 Axes, 6 Directions
- Humidity: 5 ~ 95%, Non-condensing
- Operation Temperature: -20°C ~ +55°C
- Storage Temperature: -55°C ~ +70°C
- Dimensions: 25mm X 25mm X 19mm (Lens excluded)
- Weight: Shutter ≤ 22.3g (Lens excluded), Shutterless ≤ 20g (Lens excluded)
- Driver Assistance Systems: Enhances vehicle safety with thermal imaging for better night vision.
- Car Maintenance: Aids in the inspection of engine parts, detecting temperature anomalies.
- Forest Fire Prevention: Helps in detecting heat signatures during fire surveillance.
- Fire Warning Systems: Detects early signs of fire to prevent potential hazards.
