Biochemical analysis filters

1. Features

• High Signal-to-Noise Ratio: The filters are designed with advanced coating technology to provide superior performance in biochemical analysis and enzyme labeling instruments.
• Accurate and Consistent Results: The filters ensure the highest accuracy, linearity, and consistency in test results.
• Wide Wavelength Range: These filters cover a broad range of wavelengths, making them suitable for various biochemical testing applications.
• Durable and Reliable: Manufactured to withstand harsh conditions, ensuring long-lasting performance with minimal wear.
• Customizable Options Available: Tailored solutions based on specific wavelength ranges and test requirements.

2. General Description

Shape Optics Technologies Pte Ltd (SOT) specializes in high-quality Biochemical Analysis Filters, which are designed using advanced coating techniques to meet the demanding requirements of biochemical analyzers and enzyme labeling instruments. These filters offer exceptional signal-to-noise ratio (SNR), ensuring the highest accuracy and consistency in test results. SOT’s filters are engineered to cover a wide range of wavelengths, making them suitable for a diverse array of biochemical applications such as enzyme testing, absorbance measurements, and molecular diagnostics. With a focus on precision and durability, these filters guarantee optimal performance and reliability over extended periods of use.

Additionally, SOT offers customization options to meet specific test needs, including wavelength and optical density adjustments to suit individual instruments. The filters are manufactured to high standards, offering excellent performance and long-term reliability, making them an ideal choice for laboratory use and industrial applications.

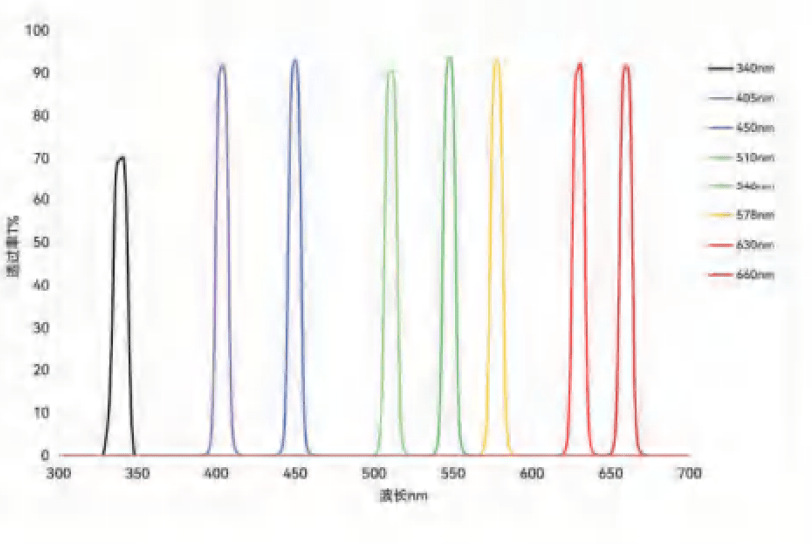

3. Spectrum Transmission Curves

For specialized applications, we can offer customized filter solutions based on the specific wavelengths and optical densities required by your biochemical testing instruments. These custom solutions ensure that your system operates with the highest accuracy and reliability, maximizing test precision.

4. Coating Quality

The coating quality of SOT’s Biochemical Analysis Filters is tested to military-grade standards to ensure exceptional durability and reliability:

• Adhesion Test: Compliant with MIL-C-675C military standards. The adhesion test involves applying tape that meets LT-90 specifications to the lens film and removing it vertically three times. No blistering or peeling is observed.
• Temperature Test: Filters are subjected to temperatures of -62±1℃ and 71±1℃ as per MIL-C-675C standards. The adhesion test is repeated at room temperature (16℃–32℃) after two hours, confirming no detachment of the film.
• Abrasion Resistance Test: Conforming to MIL-C-675C and CCC-C-440 standards, the abrasion resistance test applies a minimum force of 1.0 lbs (0.45 kg) with a gauze tester, repeated 25 times without damaging the film surface.
• Humidity Test: Filters are placed in a temperature and humidity chamber (49±2℃ and 95%-100% humidity for 24 hours), and the film remains intact with no defects such as peeling or scratches.
• Solvent and Cleaning Testing: In line with MIL-C-675C specifications, filters are exposed to acetone and alcohol for 10 minutes each at room temperature (16℃–32℃). After cleaning with alcohol, no peeling or scratches are observed on the film.
• Salt Spray Test: Filters are tested in a 35°C environment with 5% saltwater for 100 hours. The film remains undamaged, demonstrating excellent resistance to environmental factors.

5. Standard Specifications

6. General Applications and Examples

SOT’s Biochemical Analysis Filters are designed for a wide range of applications in laboratory and industrial environments:

1. Biochemical Analysis: The filters are optimized for use in biochemical analyzers, ensuring accurate absorbance measurements and consistent test results.
2. Enzyme Labeling Instruments: Ideal for enzyme assays and detection, offering reliable results with high sensitivity and accuracy.
3. Spectrophotometry: Essential in spectrophotometric analysis, helping to maintain high signal-to-noise ratios for precise absorbance readings.
4. Molecular Diagnostics: Used in molecular diagnostic tests where high accuracy and reproducibility are crucial.
5. Biomedical Research: Suitable for various research applications requiring precise optical characteristics, such as studies on enzyme kinetics and reaction rates.
6. Clinical Applications: Used in clinical diagnostic tools to measure enzyme activity and other biochemical reactions, ensuring accurate medical test results.

7. SOT Strengths and Capabilities

Shape Optics Technologies Pte Ltd (SOT) excels in the production of precision optical filters tailored to the needs of the biochemical and analytical industries. Our filters are manufactured to meet the highest standards of performance, providing exceptional accuracy, consistency, and durability. SOT is known for its technical expertise and ability to offer customized solutions, ensuring that each filter meets the specific requirements of individual customers. Whether for routine laboratory use or complex diagnostic applications, SOT’s filters guarantee superior performance and reliability, backed by rigorous quality control processes.

8. Standard Products

Customization Options

For applications requiring specific wavelengths or optical densities, SOT provides customized filter solutions. Please contact us for further details or to request a custom filter tailored to your needs.
